TTC 630 Cnc Lathe

You are here: Home » Produtcs » TTC 630 Cnc Lathe

Featured Properties

  • High axis speed (30 m/min)
  • High accuary (Repeatability: 1-5µ/X-Z Full strok, Positioning: 5µ/X-Z Full strok)
  • High cutting power
  • 45° Inclined one piece rigid cast iron body
  • Rigid spindle supported by precision spindle bearings (ISO P4)
  • VDI Revolver head (Turret)
  • Free training programming and operating machine
  • Guarantee of service and spare part
  • Motorised tail strock movement
REQUEST QUOTE
CATALOG (PDF)
GENERAL CATALOG 2025 (PDF)

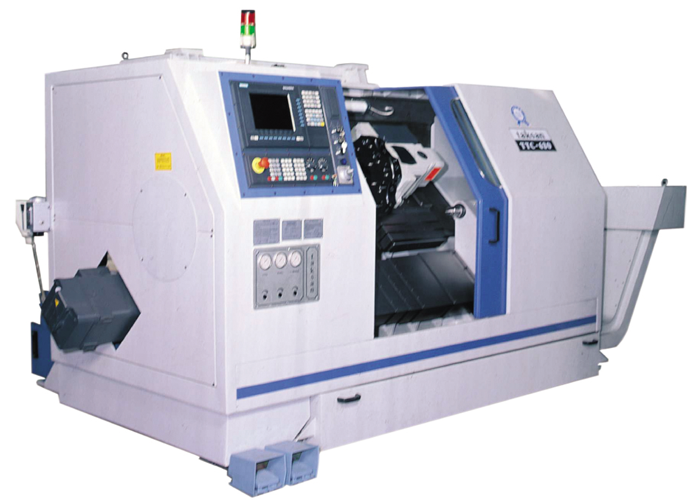

TTC 630 Cnc Lathe
Technical Specification Value Unit
CAPACITY
SWING OF SLIDE 500 mm
MAX.TURNING DIAMETER ON CENTERS 210 mm
MAX.TURNING DIAMETER 350 mm
DISTANCE BETWEEN CENTERS 630 mm
MAX. LOADING CAPACITY ON CHUCK 150 Kg
MAX.LOADING ON TAILSTOCK 200 Kg
SPINDLE
SPINDLE SPEED (STEPLESS) 10 - 40000 RPM (d/min.)
SPINDLE NOSE ISO 702/1-A6
SPINDLE HOLE DIAMETER 52 mm
MAX. BAR FEED DIAMETER 45 mm
SPINDLE BEARING DIAMETER (FRONT/REAR) 150/140 mm
HYDRAULIC CHUCK SIZE 210 mm
TRAVEL - SPEEDS
X-AXIS TRAVEL-SPEED 197 - 30 mm - m/min.
Z-AXIS TRAVEL-SPEED 630 - 30 mm - m/min.
VDI TOOL REVOLVER (TURRET)
POSITIONS 12
NO. OF ROTATING TOOL POSITIONS (VERSION) 6
BORING BAR DIAMETER DIN 69880-40
TOOL SHANK SIZE 25x25-32 mm
TOOL CHANGE (LOOKING INCLUDED) 0.7 sec
MAX. SPEED OF ROTATING TOOL (VERSION) 3000 RPM
TAILSTOCK
BODY STROKE 475 mm
QUILL STROKE 125 mm
QUILL DIAMETER 80 mm
QUILL TAPER 4 MT/MK
MOTORS
SPINDLE MOTOR POWER (SIEMENS-FANUC) 15/20 - 15/18.5 kW (S1/S2)
TORQUE (SIEMENS-FANUC) 191 Nm
X AXIS MOTOR POWER/TORQUE (SIEMENS-FANUC) 3.3 / 16 kW/Nm
Z AXIS MOTOR POWER/TORQUE (SIEMENS-FANUC) 3.3/160 - 2.0/9 kW/Nm
REVOLVER HEAD INDEXING MOTOR 1.8 kW
TOOL DRIVING MOTOR (VERSION) 3.9 / 20 kW/Nm
HYDRAULIC PUMP 1.1 kW
COOLANT PUMP 1.1 - 40 - 25 kW - L/min. - m.
MACHINE OVERALL SIZE
TOPLAM İHTİYAÇ DUYULAN GÜÇ 40 kW
MACHINE WEIGHT 4000 Kg
FLOOR SPACE 4000 x 2000 x 2300 mm
PACKING DIMENSIONS 4150 x 2150 x 2600 mm
MISCELLANEOUS
HYDRAULIC SYSTEM PRESSURE 40 Bar
HYDRAULIC TANK CAPACITY 60 Lt.
AIR CONSUMPTION 6 Bar
  • ø 210 HYDRAULIC CHUCHK
  • FOOT PEDAL
  • TAIL STOCK WITH ADJUSTABLE QUILL TRAVEL
  • COOLANT SYSTEM
  • AUTOMATIC LUBRICATION SYSTEM
  • LIGHTING EQUIPMENT
  • FULLY ENCLOSED CABINET
  • CHIP CONVEYOR(STEEL)
  • TELESCOPIC SLIDEWAYS GUARDS
  • DOOR SWITCH
  • VDI REVOLVER HEAD
  • OPERATOR CALLING LAMP
  • MACHINE LIFTING FIXTURE
  • TOOLS AND TOOL BOXES
  • OPERATING MANUAL
  • MACRO PROGRAMING
  • GRAPHIC DISPLAY
  • METRIC INC TRAVERS
  • TIME AND PART COUNTER
  • RS-232-C FOR DNC, CAD-CAM CONNECTION, FLASH CAD CONNECTION
  • TOOL SETTING ARM (RENISHAW)
  • STEADY REST
  • BAR FEEDER
  • 3.5" DISKETTE DRIVER (ONLY FOR SIEMENS)
  • C-AXIS CONTROL (ONLY FOR SIEMENS)
