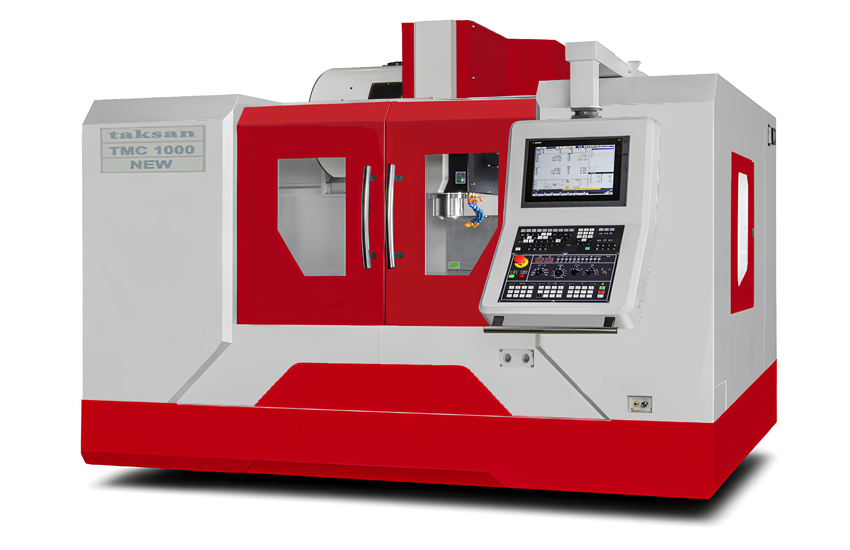

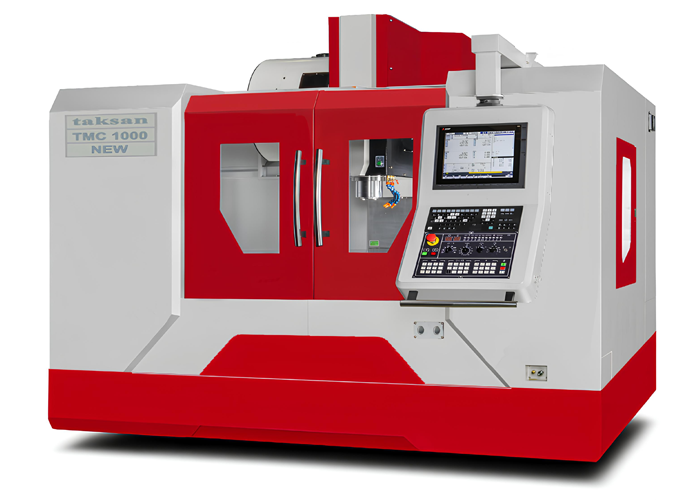

TMC 1000 NEW CNC Vertical Machining Center

You are here: Home » Products » CNC Vertical Machining Center

Featured Properties

  • MITSUBISHI M80A CNC Control system
  • High accuracy (Repeatability: 2µ/300mm, Positioning: 5µ/300mm)
  • High rigidity
  • High speed (36 m/min)
  • Free training programing and operating machine
  • Guarantee of service and spare parts
  • Spindle produced by using of oil cooling system
  • All axis lineer guide ways
REQUEST QUOTE
CATALOG (PDF)
GENERAL CATALOG 2025 (PDF)
TMC 1000 NEW CNC Vertical Machining Center
Technical Specifications Value Unit
MOVEMENTS
X / Y / Z AXIS TRAVEL 1020 / 510 / 560 mm
SPINDLE NOSE TO TABLE 150 - 710 mm
TABLE
TABLE OVERALL SIZE 1200 x 500 mm
MAX. LOADING WEIGHT 800 Kg
T-SLOTS (WIDTH x NO x PITCH) 18 x 5 x 100 mm
DISTANCE (FLOOR TO TABLE SURFACE) mm
SPINDLE
SPINDLE SPEED 8000 RPM
10000 RPM (OPTION)
SPINDLE TAPER BT 40
BBT 40 (OPTION)
LUBRICATION SYSTEM GREASE (FOR LIFE)
FEEDRATE
RAPID TRAVERSE X,Y,Z 36 m/min.
CUTTING FEEDRATE 1 - 10000 mm/min.
BALLSCREW X,Y,Z C3 40mm
AUTOMATIC TOOL CHANGER
TYPE ARMLESS
ARM TYPE (OPTION)
CAPACITY 16
24 (OPTION)
TOOL SELECTION RANDOM, BI-DIRECTIONAL
TOOL DIAMETER / LENGTH / WEIGHT Ø100 mm / 250mm / 7 Kgs
ATC TIME (TOOL TO TOOL) 1,6 Sec
ATC TIME (CHIP TO CHIP) 3,1 Sec
MOTOR
SPINDLE MOTOR (MITSUBISHI) 15 HP ( 7.5/11 )
X-Y AXIS MOTOR (MITSUBISHI) 2 kW
Z AXIS MOTOR (MITSUBISHI) 3 kW
ELECTRICTY AND AIR CONSUMPTION
ELECTRICTY NEEDED 25 KVA
AIR NEEDED 5-7 kgf/cm²
COOLING
TANK CAPACITY 155 Lt
PUMP CAPACITY 60 Lt/min. - 2m
WEIGHT & FLOOR SPACE
WEIGHT 5,190 Kgs
FLOOR SPACE (LxWxH) 2,980 x 2,955 x 3,044 mm
  • COOLANT EQUIPMENT
  • LUBRICATION EQUIPMENT
  • LIGHTING SYSTEM
  • OPERATOR CALLING LAMP
  • TELESCOPIC SLIDEWAYS
  • FULLY ENCLOSED CABINET
  • AUTOMATIC TOOL CHANGER (24 TOOL ARM TYPE)
  • RAPID TAPPING
  • CHIP CONVEYOR
  • TOOLS AND TOOLS BOX
  • OPERATON AND MAINTENANCE MANUAL
  • MACRO PROGRAMING
  • GRAPHIC DISPLAY
  • METRIC-INC TRAVERSE
  • DATA SERVER
  • RS-232 C FOR DNC AND CAD-CAM CONNECTION
  • COMPACT FLASH CARD INLET
  • ADDITIONAL TABLE
  • FOURTH AXIS AND ROTARY TABLE
  • TOOL ADJUSTMENT DEVICE
