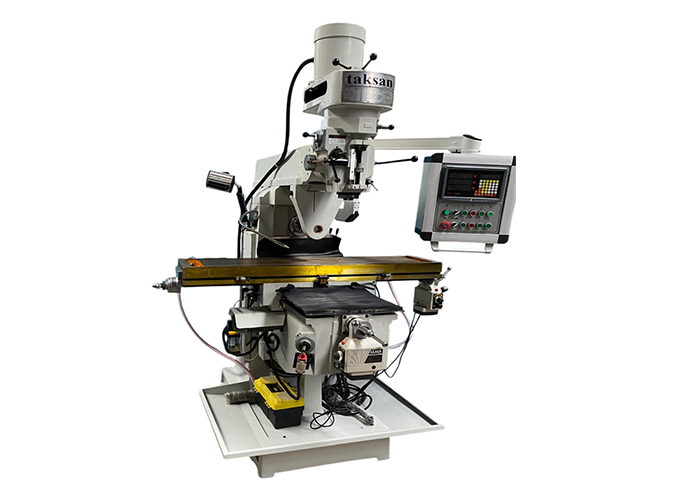

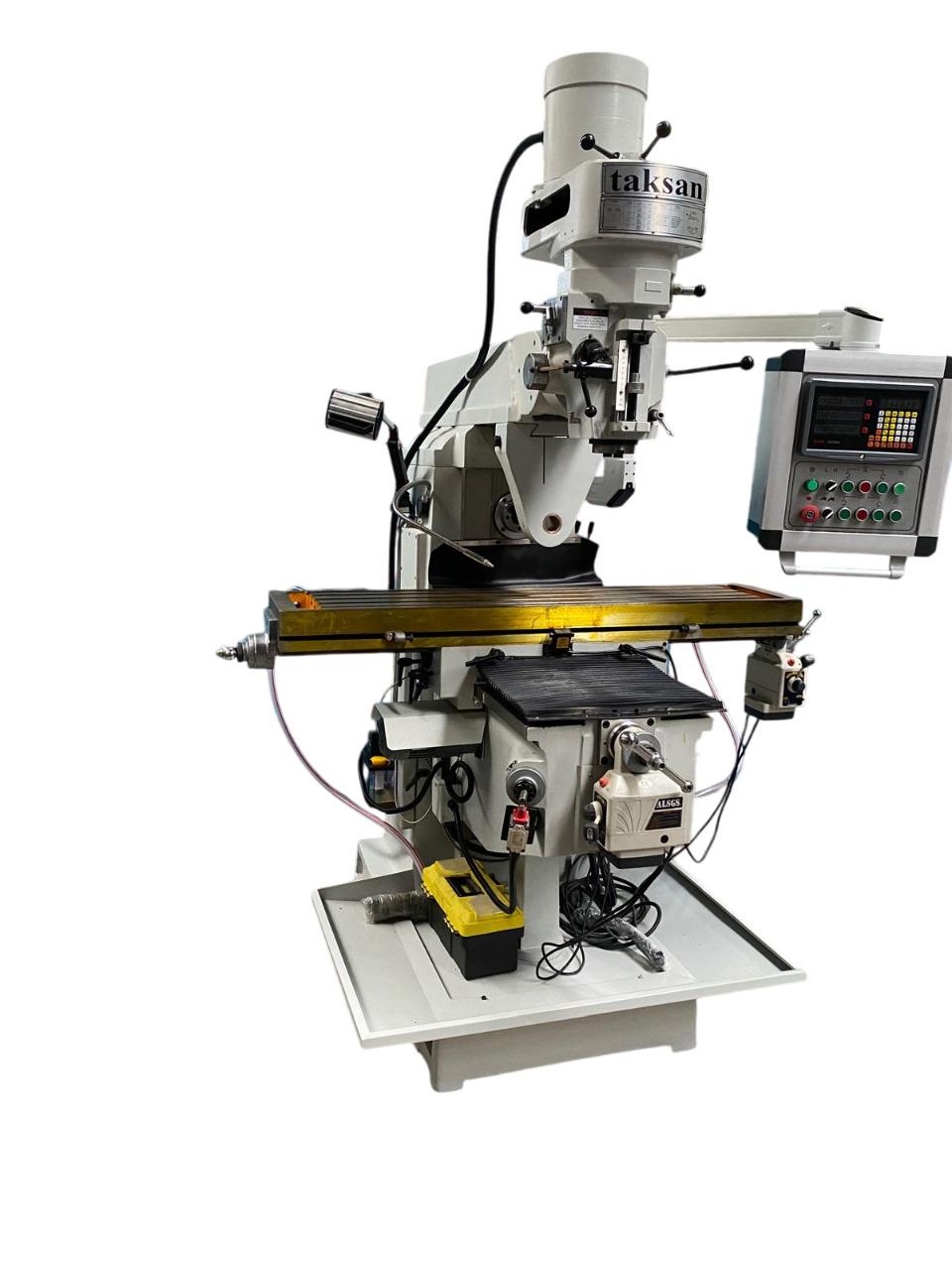

TKF 260 VH Tool Room Milling Machine With Vertical & Horizantal Spindle (NEW)

You are here: Home » Products » TKF 260 VH Tool Room Milling Machine With Vertical & Horizantal Spindle (NEW)

Featured Properties

  • SQUARE GUIDEWAYS ON Z&Y AXES
  • DOVETAIL GUIDEWAY ON X AXIS
  • STEPLES ROTATING SPEED BETWEEN 65-4500 rpm (VERTICAL)
  • ROTATING SPINDLE BETWEEN 40-1300 rpm (HORIZONTAL)
  • HARD CHROME PLATED GROUND QUILL
  • PRECISION SPINDLE BEARINGS (ISO P4)
  • C5 CLASS BALL SCEW ON X-AXIS AND Y-AXIS
  • RAPID FEED ON X-AXIS AND Y-AXIS
  • CENTRAL LUBRICATION SYSTEM
  • EASY TO USE CONTROL PANEL
  • DOUBLE LOCKS ON ALL AXES
REQUEST QUOTE
CATALOG (PDF)
TKF 260 VH Tool Room Milling Machine With Vertical & Horizantal Spindle (NEW)
Technical Specifications Value Unit
WORK TABLE
TABLE SIZE 1370 x 300 mm
T-SLOTS NUMBER / SIZE 3 / 16x65 Pcs/mm
TRAVERSES
LONGITUDINAL TRAVEL (X) 850 mm
CROSS TRAVEL (Y) 400 mm
VERTICAL TRAVEL (Z) 400 mm
SPINDLE
SPINDLE SPEED (VERTICAL HEAD) Standard 16 steps: 65-4500 (50Hz); 80-5440 (60Hz) r/min
SPINDLE SPEED (HORIZONTAL HEAD) Standard 12 steps: 40-1300 (50Hz);48-1560 (60Hz) r/min
QUILL
SPINDLE TAPER (VERTICAL) NT 40
SPINDLE TAPER (HORIZONTOL) NT 40
QUILL TRAVEL 127 mm
QUILL FEED ( 3 STEPS ) 0.04 / 0.08 / 0.15 mm/rev.
ORIENTATION OF SPINDLE HEAD
HEADSTOCK SWIVEL ±90°
HEADSTOCK TILTING ±45°
OVERARM TRAVEL 470 mm
DISTANCE SPINDLE NOSE TO TABLE (MIN. - MAX.) 0 - 405 mm
WEIGHT & SIZE
MACHINE WEIGHT 1680 Kg
FLOOR SPACE 2550 x 2200 x 2240 mm
DRIVING POWER
TOTAL POWER 8.4 kW
SPINDLE MOTOR (HORIZONTOL HEAD) 3 kW
SPINDLE MOTOR (VERTICAL HEAD) 2.25 kW
  • AUTOMATIC CENTRAL LUBRICATION SYSTEM
  • DRAW BAR
  • CHIP PAN
  • WORKING LAMP
  • COOLANT EQUIPMENT
  • TOOL KIT
  • POWER FEED ON X-Y AXIS
  • RAPID TABLE ELEVATING MOTOR
  • DIGITAL READOUT
  • OPERATING AND MAINTENANCE MANUAL
